Description

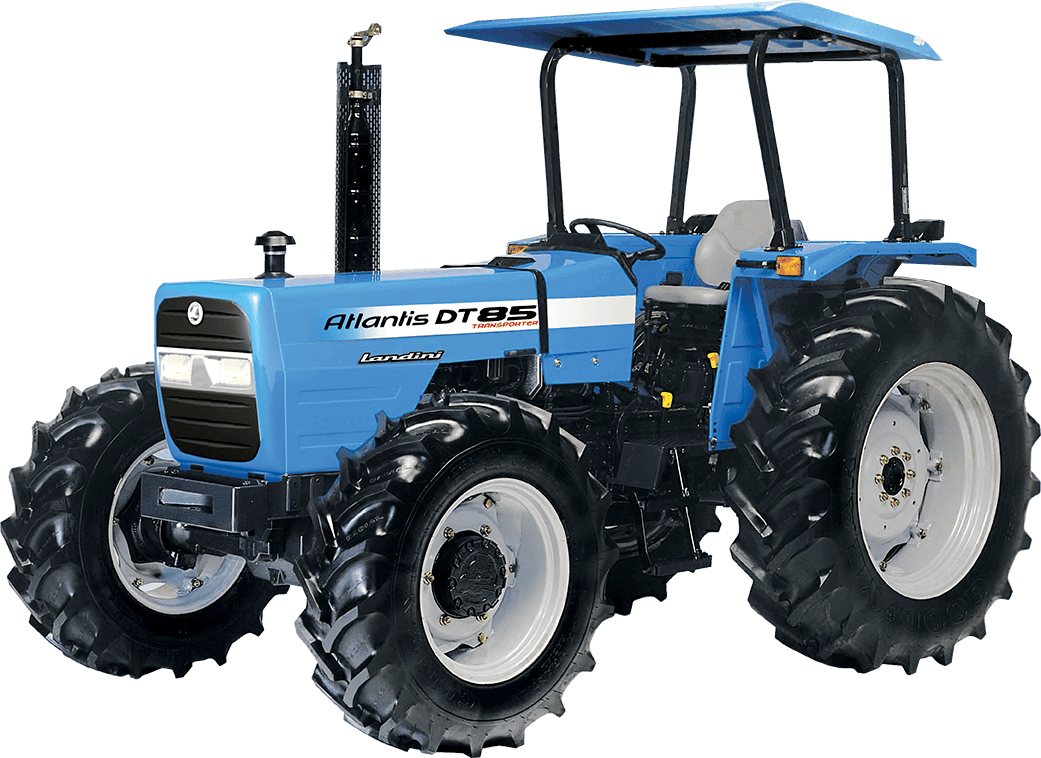

The “Classic” Atlantis DT85
A timeless tractor. The Classic Atlantis Dt85 is re-introduced to markets due to overwhelming response and this time guaranteeing new functions and performance levels, while maintaining all the strong features and the classic European style design.
Now upgraded as a standard, synchromesh 12 forwards and 12 reverse shuttle transmission together with the existing strong Perkins 1104 series engines, the Classic Atlantis DT85 benchmarks the agriculture tractor market with top class features and functionality. The independent PTO has 2 speeds, 540/1000 rpm and with Ground Speed PTO available. The axles are equipped with 4-wheel drive and differential locks are rear with mechanical engagement.
Perkins 1104A series engines
The Classic Atlantis DT85 retains the 4.4 L Perkins 1104, which was acclaimed for its extreme reliability. This Natural Aspirated engine provides strong torque, reliability and versatility for all agriculture purpose usage.

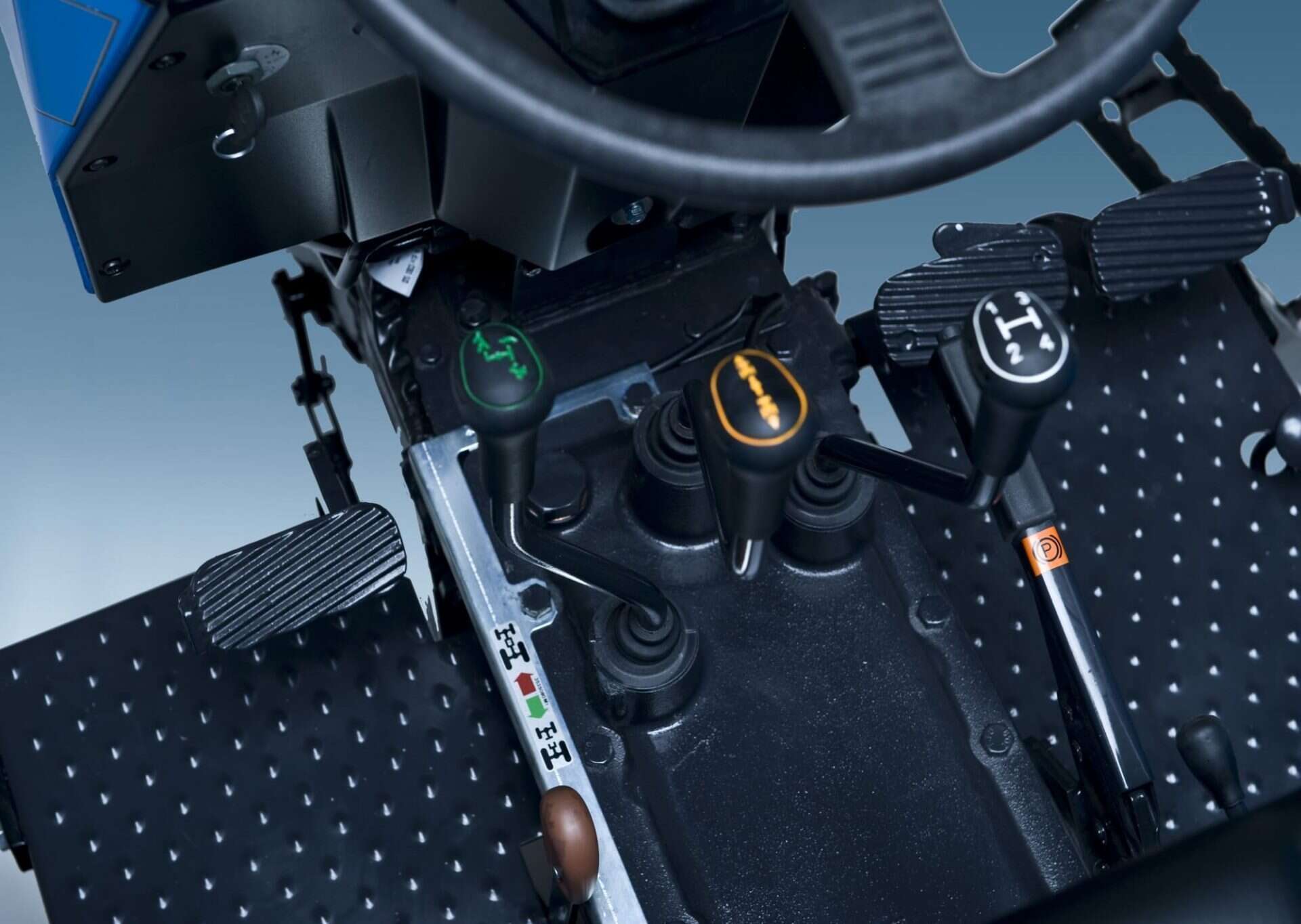

The strong point of the series is the transmission
The strong point of the Classic Atlantis DT85 is the transmission, available with a 12+12 Synchro Shuttle dry clutch for 30km/h minimum speed. The transmissions allow maximum operability in all working conditions.
Hydraulic circuit
The hydraulic flow rate to the services (hitch and rear spool valves) is 54 litres/min. An optimised oil filtration system ensures circuit maintenance. 2 versions are available with 1 rear spool valve as standard and 2 rear spool valves as optional.
